Bonded / Dowty Seals
Delivering Reliable Solutions






Bonded / Dowty Seals




Bonded / Dowty Seals



REV-BDS - Bonded / Dowty Seal
with installation diagram

REV-BDS-C - Bonded / Dowty Self-Centering Seal
with installation diagram

Bonded / Dowty Seals Bonded / Dowty Seals
Bonded / Dowty Seals  REV-BDS Bonded / Dowty Seal can be used to
     seal clearance or tapped holes in general engineering
     using a wide range of different bolts

Bonded / Dowty Seals   Can be used on flat flanges or with recessed bolt holes
Bonded / Dowty Seals  Concentrically located
Bonded / Dowty Seals  Positively retained
Bonded / Dowty Seals  Ability to pre-assemble
Bonded / Dowty Seals  Ease of assembly
Bonded / Dowty Seals  All European thread sizes available

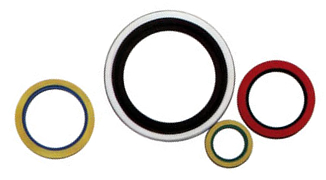

Bonded / Dowty Seals represent a combination of metal washer and elastomer sealing lip vulcanised to the edge of the metal part to seal bolted connections and mounting elements in all industrial applications e.g. pipe connections and couplings.



When the bolted connection is tightened, the sealing lip is pressed against the flat surfaces. The metal washer ensures that the components to be connected are reliably and securely held. The thickness of the washer limits the compression of the elastomer seal, eliminates any over torque of the joint, thereby ensuring a reliable sealing system. The internal pressure increases the sealing force by energising the sealing lip.



Revata Engineering manufactures Bonded / Dowty Seals in a wide range of sizes and standards. We also manufacture special Bonded / Dowty Seals based on customer requirements.



Advantages of Bonded / Dowty Seals:

Bonded / Dowty Seals  Bonded / Dowty Seals are cost effective solution for bolt/thread sealing
Bonded / Dowty Seals  Versatile, applicable to all threaded bolts, studs and clearance holes
Bonded / Dowty Seals  Sealing washers are available for metric, Whitworth and BSP threads
Bonded / Dowty Seals  Bonded / Dowty Seals are available in a large range of elastomers and metals available
Bonded / Dowty Seals  Wide temperature range
Bonded / Dowty Seals  Reliable high and low pressure sealing
Bonded / Dowty Seals  Metall washer prevents over -compression and extrusion
Bonded / Dowty Seals  Usable for overhead installation
Bonded / Dowty Seals  Can be automatically installed
Bonded / Dowty Seals  Seals to plane surfaces with no housing for the sealing lip
Bonded / Dowty Seals  Visible from the outside
Bonded / Dowty Seals  No sweating
Bonded / Dowty Seals  Bonded / Dowty Seals are re-usable
Bonded / Dowty Seals  Metal washer with vulcanised sealing body of rubber for sealing of bolt heads and flanges
Bonded / Dowty Seals  Bonded / Dowty Seals are available in all European thread sizes.
